Descriptions:

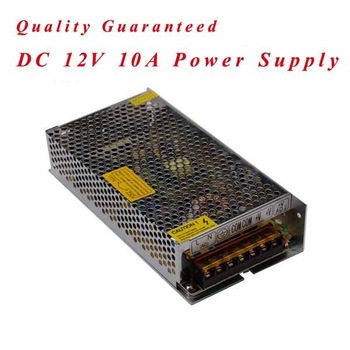

12v 10a LED driver for LED strip power supply，it is Built-in over voltage, over current,
and short circuit protection PWM design, make sure the stability and high efficiency of
power supply. Anti-jamming, passed EMC test, wave less than 20MV. Constant voltage
output, assume stable power supply for LED lightings to reach long lifetime
12v switching power supply manual:
Parameters:
| Input/Rated voltage |
AC85～265V |
| Output Voltage |
12V |
| Output Current |
0~10A |
| Power |
120W |
| Short-circuits protect |
OK |
| Over loading |
OK |
| Input-Output AC 1.5KV/5mA |
1Min |
| Ripple |
≤600MVpp (120Hz) |
| Efficiency |
≥80% |
| Noise (Max) |
180mVp-p |
| Voltage Tolerance |
±1% |
| Working Temperature |
-25℃～+40℃ |
| Color |
Silver |
| Weight |
550 g |
| Shell Material |
Aluminium |
| Safety Compliance |
FCC / CE /Rohs |
| Warranty |
1 year |
Typical Applications:
LED Strip power supply
Security surveillance industry
Other industrial applications
Item Specification:
100% brand new and high quality, you can buy with confidence
Vibration: 10～500Hz，2G 10min./1cycle, period for 60min, each along X.Y.Z axes
Withstand Voltage: I/P-O/P：3KVACI/P-FG：1.5KVACO/P-FG：0.5KVAC
Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG：500VDC/100MΩ
Safety Standards: Design refer to UL1012, EN60950
EMC Standard: Design refer to EN55022, EN55024, EN61000, IEC1000-4-2, 3, 4, IEC1000-3-2
IN-DOOR USE ONLY!
Please note:
This power supply DOES NOT come with installation instruction, on/off switch or screws.
Professional installation by qualified electrician is always highly recommended.
