• Led remote dimmer(M5 mini led christmas light strips controller)

Led remote dimmer(M5 mini led christmas light strips controller)


  • Model: HK-led-d-252014
  • Shipping Weight: 0.45kg

Add to Cart:

We ship to over 200 countries worldwide!

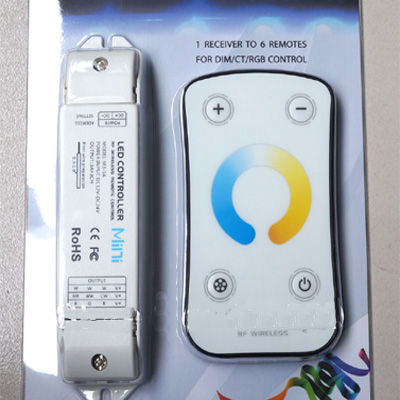

  This is wireless remote light (M5 mini  remote+receiver  CCT touch dimmer).it can control
Christmas string lights,Our Mini M5 mini led christmas light strips controller are being used
in homes, businesses and towns across the country. Remote control has been matched to
the receiver before leave factory,if deleted accidentally,you can learn ID as follow,
Learning ID:Press ID learning button on the receiver until the running light is on,then press
                   any key on the remote control,the running light flashes several times,activated.
Cancel ID:Press ID learning button on the reciever for 5 seconds.

Mini led Receiver parameters:

Compatiable Remote M1/M2/M3/M4/M5/M6/M7
Power Input DC12V~DC24V
Output Max 3A*3CH.
Output Max 108W(12V)/216W(24V)
Working Temp -30℃~55℃
Dimensions L135*W30*H20(mm)
Weight(N.W) 47g

Mini LED Remote Control parameters:

Working Voltage 3V(battery Cr2032)
Working Frequency 433.92MHz
Remote Distance 40m~50m
Working Temp -20℃~55℃
Dimensions L104*W60*H9(mm)
Weight(N.W) 42g
Remote+Receiver Total Weight(G.W.) 120g

A. RF remote is fashionable,slim,light and easy to carry while receiver is small,exquisite and
    easy to install.
B.RF remote with low power consumption,long distance,strong obstructions penetrating ability,
   independent ID interference-free and other properties.
C. 4096 / road grey scale  (most of them is 256 in the market),  high grayscale performance is
   more outstanding, the light is more gentle,  dynamic changing modes become more rich and
D. One receiver compatible with six  different  functions of the remote, that is use one receiver
   can experience dimming, color temperature and RGB control.
E. rf remote is simple and intuitive to use,a variety of actions at a glance,what  you see is what
    you get.
F. Automatic sleep mode,when the touch remote unattended operation over 30s,it can automa
   -tically enter standby mode to extend battery life.
Sleep Mode:
When the touch remote unattended operation over 30s,it can automatically enter standby mode
to extend battery life.press any of these four keys to continue.
The learniing ID Method:
Remote has been matched to the receiver before leave factory, if deleted accidentally, you can
learn ID as follow:
Learning ID:Short Press "ID learning button"on the M3-3A receiver, the running light is on,then
press any key on the remote.the running light flashes several times,activated.

Canceling ID:Press"ID learning button"on the M3-3A receiver for 5 seconds.

Product Size for remote:

                                          Receiver size

     RF remote size
Wiring Diagram:

1. The product shall be installed and serviced by a qualified person.
7. If a fault occurs please return the product to your supplier. Do not attempt to fix this product
    by yourself.
6. Ensure all wire connections and polarities are  correct  before  applying  power to avoid any
   damages to the LED lights.
5. Pls ensure that  adequate sized cable is  used from the  controller to the LED lights to carry
    the current. Please also ensure that the cable is secured tightly in the connector.
4. Please check if the output voltage of any LED power supplies used comply with the working
    voltage of  the product.
3. Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation.
2. This  product is  non-waterproof.  Please avoid the sun and rain.  When installed outdoors  please
    ensure it is mounted in a water proof enclosure.

Mini led controller of Instruction for Receiver:

With customizable and optional with other models of RF Remote;

Package include:
1 *  led receiver
1 *  remote controller
