We offer a range of commercial quality LED light strings that are suitable for Outdoor advertising
christmas decoration etc... in here you can geted the Innovative mid-way power supply connects the

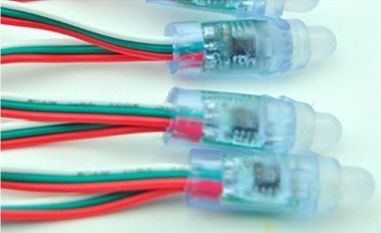

waterproof DC5V diffused rgb led node for channel letters ... The dots are waterproof and rugged.
and Each pixel node has it's own RGB level set by the controller(RGB Pixels are digitally-controllable
lights you can set to any color, or animate Each RGB LED and controller chip is molded into a 'dot' of
silicone this means that you will have control of colors over the whole strand,not individual pixels.each
strand is completely waterproof ). jobs enabling you to control the LED Modules.Find detailed product
information for 12mm led pixel node as follows;
The Waterproof led pixel node parameter:

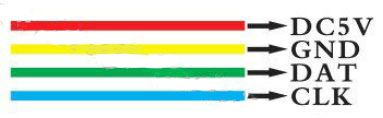

Signal Wire define
Part 1 LED is 50pcs per string.8cm wire between each LED,punching diameter is 12mm
Part 2 Installation to avoid the risk of electric shock.
Part 3 LED lamp,if any, when deformed or damaged,replace.
Part 4 This LED has different IC model,please notice different IC different wire define
Part 5 LED input voltage is DC5V,used the sd-card controller normally,DMX compatiable.
Part 6 It is not suitable for use in the climax of the environment in the high humidity

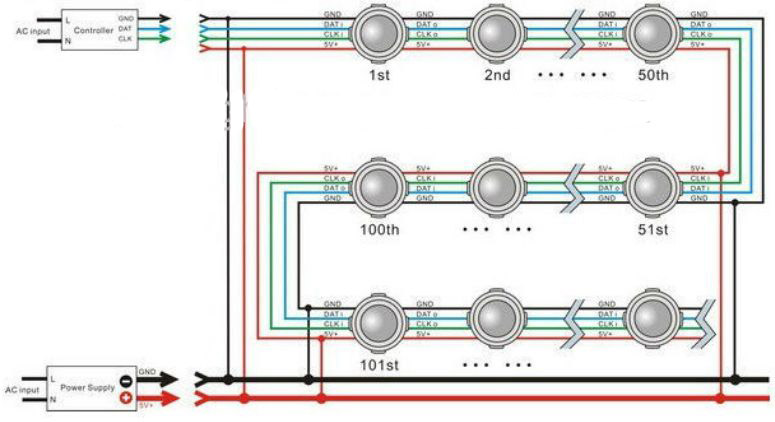

Wiring Diagram for PL-D-Digital Control Series

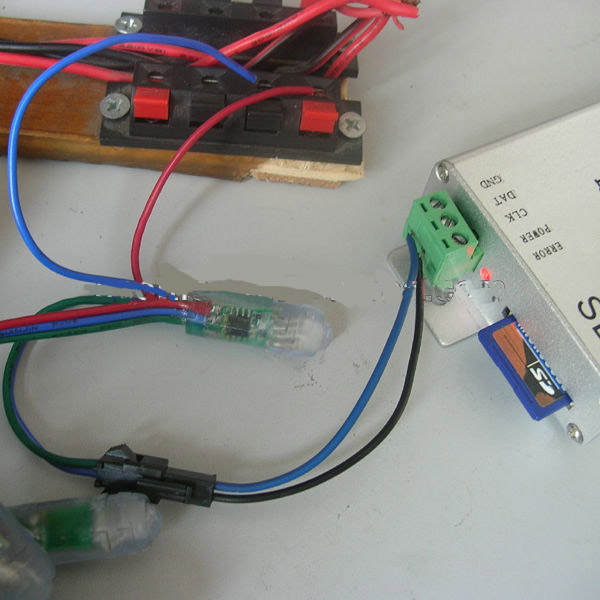

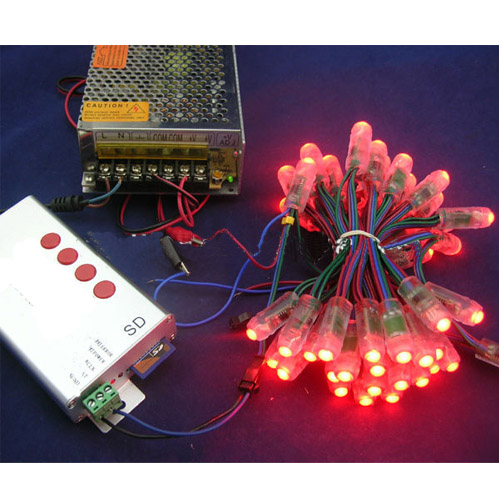

The controller conncection way

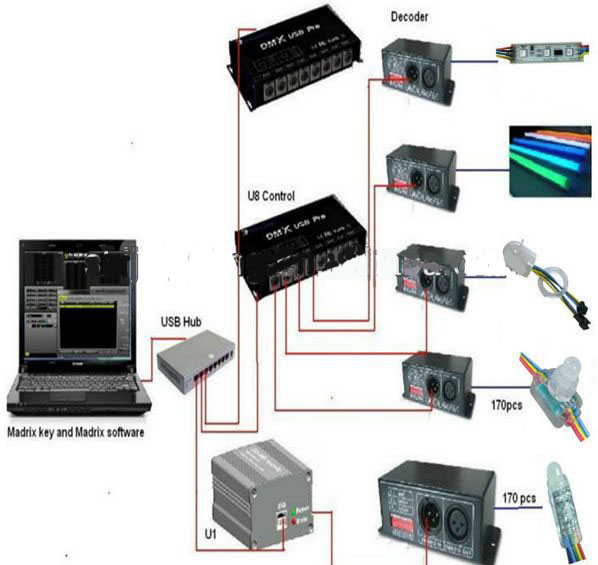

DMX connection way guide

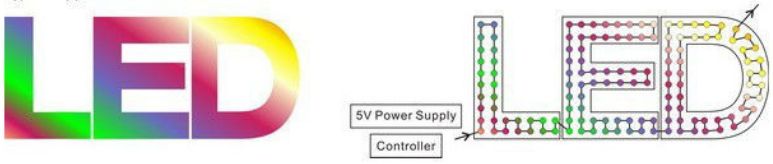

Meets the general lighting
environment such as:
We Offering comprehensive LED lighting solution for you
Innovative mid-way power supply connects the lighting string by waterproof is worth having is worth to you!
