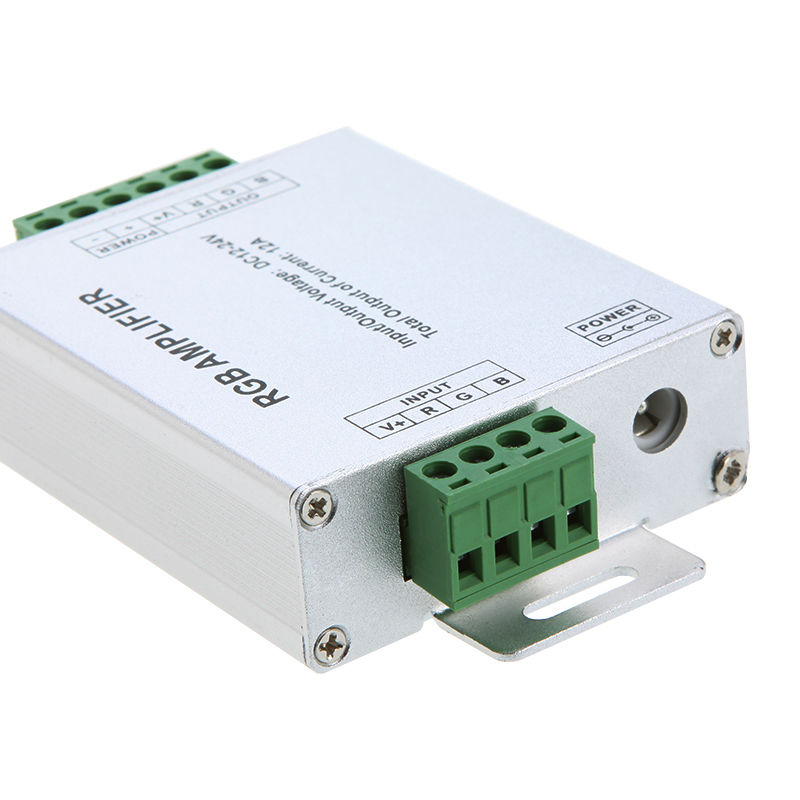

• RGB AMPLIFIER Controller signal 12V 3528&5050SMD led amplifier

RGB AMPLIFIER Controller signal 12V 3528&5050SMD led amplifier

$5.10

  • Model: HK-led-d-012014
  • Shipping Weight: 0.5kg


Add to Cart:



INTERNATIONAL SHIPPING AVAILABLE.
We ship to over 200 countries worldwide!



Descriptions:
RGB amplifier applies to all the voltage-controlled LED controller;
It is userd to RGB signal from LED controller and send the signal to another group of LED source
RGB Amplifiers are typically useful in situations where length of the LED appliance (LED Strip or LED Bar) is
longer than recommended for single piece or where it’s being split on multiple pieces span across large room.
It other words if you need LED strip 10, 20 meters or even longer, you need an amplifier. RGB Amplifiers never
come along; they always pair withRGB Controller and perform as slave in this pair.

Working temperature -20 ~ 60 deg C
Power Source DC
Supply Voltage DC5V,12V,24V
NET weight 70g
Output Three COMS drain-open output
Output Channel 1 Channel
Output  power 5V<60W,12V<144W;24V<288W
Color Silver
Connecting Mode Common anode
Max. output current 4A each color
Warranty 12months
Product size 106 x 62 x 23 mm

Specifications:
1.12V RGB Amplifier
2.RGB strip light amplifier
3.LED RGB signal amplifier
4.CE&RoHS

Connect Diagram:



Panel specification and connecting drawing as follows:

RGB AMPLIFIER Controller signal Series connection:


ddd1
