Descriptions:

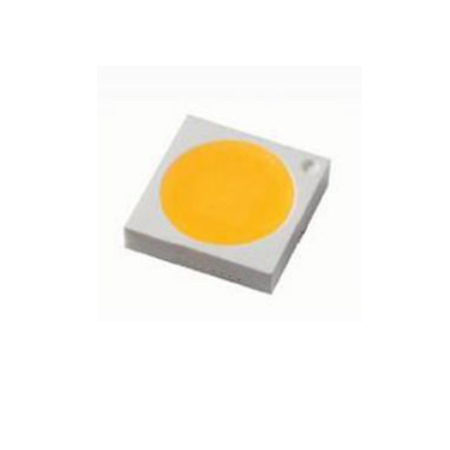

This High quality top view 3030 smd led is arranged by case . and 1W High power LED Standard Packing:
with EMC material, has an excellent resistance to high and low temperature and good sealing performance.
more information about smd 3030 as follows:
Parmeters:
| Package Type |
Surface Mount |
| Max. Forward Voltage |
1.7-3.6V/3.0-3.4 |
| Max. Reverse Voltage |
5V |
| Max. Forward Current |
60mA/150-350MA |
| Max. Reverse Current |
10uA |
| Product name |
cold/warm white smd 3030 led |
| Certification |
CE/RoHS/FCC/CCC/SG |
| OEM service |
OEM/ODM(red/yellow/green/bule supplier) |
| Chip Brand |
Epistar |
| Chip Material |
GaAsP/GaP |
| Life |
above 60000 Hours |
| Feature |
High efficiency&Energy saving |
| Work/stock temperature |
-20 ° to +85 ° |
| Optical Attenuation(%) |
0.4 |
Specifications:
Main advantages of top view 3030 smd led :
*110-130LM/W high efficiency
*LED Gold Line from Germany *120 degree viewing angle
*Brilliant packaging technology.
*led with Low lighting attenuation,and Conversion factor can reach 90%
*Good glare control create high quality products.
*Special design for heating output.
*High quality top view 3030 smd led owns Long lifespan which is up to 50,000 hours
*Leds with TaiWan original Epistar chips amd Bridgelux chips from USA .
*High quality top view 3030 smd led is with CE/ROHS.
*Quality control: led 100% tested before shipping
*Top quality raw material, All materials are strictly tested before usage.
A lot of Webpage visitors mentioned only one of the same problem.as follows:
SMD2835, SMD3528, SMD3014, SMD3030, what's the difference?
These are just different frame size，large size can use larger chip package can increase the current, increase the brightness, the price is not different。
2835 drive current about 60 mA
3014 drive current about 30 mA
3528 drive current about 20 mA
3030 drive current about 60 mA
Handling precautions of top view 3030 smd led :
Handle the component along the side surfaces by using forceps or appropriate tools
Do not stack together assembled PCB containing exposed LEDs.Outside impact may
scratch the siliconelens or damage the internal circuitry.
If necessary, please use leaded soldering as more as possble.
High temperature cause serious heat damage to LED products,
make sure the temperature of the soldering area is below 230℃.
NOTE:the same process applies to jobs that handle uv led strip.
Summary:
Smd5050 with high brightness, high luminous efficiency, high reliability,
suitable for indoor and outdoor lighting LED lamps, lights, bulb, flat light,
backlight, etc.
This pack is perfect for prototyping circuits.
