Descriptions:

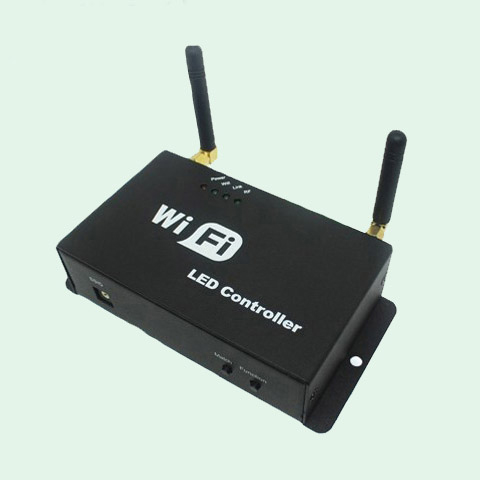

This is wifi controller - led wireless controller(WiFi-LED controller is following the traditional with
infrared, RF technology controller foundation.) it is responsible for receive control singnal and
control led equipment Wireless remote controller. so you can Download Wifi Controller 2 and
enjoy it with mobile. without mobile also can use the remote controller to control the led. Use
WiFi technology can make our control range more wider, can get rid of narrow space
constraint, in building can control more than 50m,in outdoor can control more than 100m. it is
very convenience, bring many choices for you.
The wifi Remote control technical parameters:
1. Remote control technical parameters
| Working temperature |
-20-60 degree |
| Power supply method |
AAA*3 |
| Supply voltage |
1.5V*3 |
| Standby power |
0.015mW |
| Standby current |
3uA |
| Working current |
200uA |
| Emission current |
10mA |
| Remote control distance |
about 50m |
| Standby time |
6 months |
2. Software technical parameters
| Runtime platform |
Android version support Android system, IOS version support IOS system, equipment must have WiFi function.
|
| Byte |
Android version(622K), IOS version(581K). |
| Language |
English |
| Category |
communications Free, green, no plug-ins |
3. Controller technical parameters
| Working voltage |
DC5--24V |
| Output control |
can flexible control 3 channel, 2 channel, 1 channel LED lamps. |
| Output current |
4A*3 |
| Connect mode |
common anode |
| Packing size |
L215*W165*H55(mm) |
| External dimension |
L107*W65*H30(mm) |
| Net weight |
340g |
| Gross weight |
500g |
| Receiving sensitivity |
802.11b DSSS(-5dBm), 802.11b CCK (-10dBm), 802.11g OFDM(-15dBm) |
The wifi controller application:
1. On /Off key 2. color disk 3. mode key 4. speed/brightness bar
5. RGB mode LED control window
6. Cold white and warm white mode LED control window
7. Dimmer mode LED control brightness window
8,Dream Color software setting window

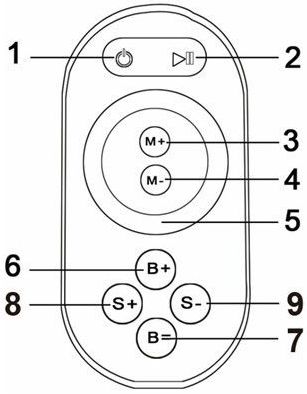

1. On /Off key 2. pause key 3. mode+ key 4.mode+ key
5.color pulley key 6.brightness+ 7.brightness-
8.speed+ 9.speed-
Typical Application:

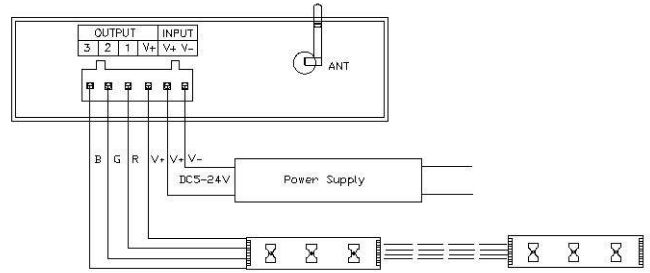

Connect threechannels LED instruction
When connect three channels LED,you should put the Dream Color software switch to CD
mode to use,only under this mode,you cancontrol the LED's color,brightness and speed.Color
disk adjust the color(Adjust process can be seen in the upper left corner R,G,B numerical with
change ),speed/brightness item speed and bright("M"set the LED dynamic effect,"M"adjust the
LED dynamic change.
