• Touch panel dimmer

Touch panel dimmer


  • Model: HK-led-d-402014
  • Shipping Weight: 0.85kg

Add to Cart:

We ship to over 200 countries worldwide!

The Cheap led strip dimme Touch Panel Color-temperature Controller ( as call  Low –voltage
touch panel Color-temperature Controller ).touch panel color temperature controller is a new
high-end controller which newly developed by our company. It adopts glass panel design,with
AC input and output DC.
the user can conveniently control led strip(example:5050 led strip)


Working temperature -20-60 degree
Supply voltage DC12~24V
Output voltage DC12~24V
Output 1 channels

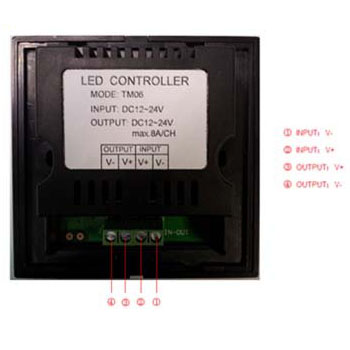

Connection mode common anode
Output current <8A
Output power 12V<96W, 24V<192W

.Dimmer is a controller that it can adjust brightness infinitely, its control mode is knob-operated
 control, you could adjust light to the appropriate lighting brightness in accordance with your actual need.

.Soft and stable, no flickering
.Mainly used to adjust the brightness of single color LED lights
.Low power consumption and energy-saving
.Can reduce the times and cost of replacement lamps
.Constant voltage and constant current output, can be connected with amplifiers to extend its load.
.Easy to install and simple to use

Typeical Application:
install led controller


Installation method:
install led controller
*Gently pry gaps in touch panel with a screw driver, then you
can slowly remove the panel, as shown.
install led controller

*Remove the cable. Pull the lock of the terminal transposon,
and then you can slowly remove the cable as shown.
install led controller


*Secure the base of controller in the 86x86 installation box
(customers need to buy the installation box by themselves) on
the wall with screws
install led controller


*Use your hand, gently pull down the cable seat lock according to step 2,
plug the cable into cable seat, press the lock, and mount the cable of panel
on the base, as shown. Installation is completed.
install led controller
1. Connect the load wire at first, following by the power wire; Please ensure
short circuit can not occur between connecting wire before you turn on the
2.The supply voltage of controller ranges in DC12V~DC24V, it may burn out
the controller once exceed the voltage ranges
Package Content:
.1 x LED Strip Lights Dimming Touch Panel Controller
