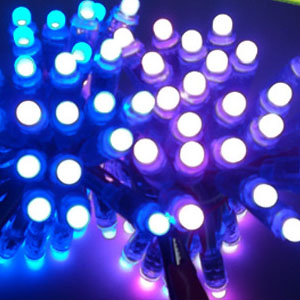

• WS2801IC 12mm diffused thin digital rgb led pixels 50 PCS/String

WS2801IC 12mm diffused thin digital rgb led pixels 50 PCS/String

$68.00  $47.00
Save: 31% off

  • Model: HK-led-s-352014
  • Shipping Weight: 1.2kg

Add to Cart:

We ship to over 200 countries worldwide!

These ws2801 digital adressable led flexible strips  composed of a combination of  5V led and RGB LEDs IC(WS2801IC)
factory price ws2801 led pixel light     factory price ws2801 led pixel light

WS2801IC pixels led strips Connecting with the controller can get more than 80 programs which are various color
hanging and almost magic effect.
The pixels use 8mm diffused RGB LEDs  can connected by a 4-conductor cable. +5V,
ground, data and clock. Data is shifted down from one pixel to the next so that you can easily cut the strand or attach more
onto the end.

Parameters of Led Pixel module:

Input Voltage 5V DC
Power Consumption 0.3W/Pcs
IC type WS2801
Waterpoof Type IP67(waterproof outdoor)
Brightnes 400mcd-1200mcd
Cable Length 10mm between each 2 lights
Wave Length Red 620-630nm; Green 510-470 nm; Blue 455-470 nm;
Punch holes size Diamter 12MM
Size of LED light 8MM
LED Typ DIP Straw hat F8 LED with Samrt IC(WS2801 Chip)inside
Color RGB full color or Single color
Material of crus Clarity PVC
Life Span >50,000 Hours
Package  50 PCS ws2801 pixel led (String

 string has 50 nodepixels ws2801
These RGB pixels strips can driver by DC5V Directly,  a more wonderful –led user can be define light source These are
the Digital Pixel Light Round that can be controlled with computers and other DMX/Digital Controllers or stand alone SPI
Controllers.simply put:The full color advertising led can change any color/pattern with the use controller(USB DMX512
or via DMX to WS2801/WS2803 Converter.So Ideal replacement of neon light and other traditional advertising lighting.
WS2801 Digital RGB LED Pixels for advertising lighting

This mini pixel dot we have brush the glue"  Anti-corrosion paint" on the PCB,  brush it on the PCB, it can Dustproof, waterproof,
 anti rust, it can better to protect the resistance and PCB, with very good waterproof grade, and extend the using time.

WS2801IC Intelligent Addressable LED Pixel module

ws2801 pixel module Connection:
1) Signal wire: DC+, CLK, DAT, GND
2) DC+ and GND connect to power supplier; CLK, DAT and GND connect to controller
3) Relative Controller: SPI controller support WS2801; when use DMX decorder, can connect to DMX system
4) Support online control

Please refer to the following links : ws2801 pixel for display advertising installation steps:
How to making a ws2801 pixel (ws2801ic)


Factory direct sales(factory price ws2801 led pixel light), a large quantity of sense!
