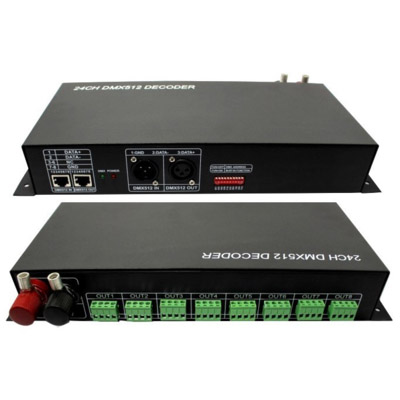

• 24 Channel led DMX decoder(rgb dmx512 lighting controller)

24 Channel led DMX decoder(rgb dmx512 lighting controller)

$123.00

  • Model: HK-led-d-052014
  • Shipping Weight: 1.8kg


Add to Cart:



INTERNATIONAL SHIPPING AVAILABLE.
We ship to over 200 countries worldwide!



Descriptions:
 The 24CH DMX decoder adopt the advanced micro-computer control technology. it receives
standard DMX-512 digital control signal and transformed it  into  PWM signal for driving LED;
The  customer could connect RGB DMX module with LED 24 channel DMX digital console to
achieve dimming or various changes in procedures.It is mainly used for the controlling of build
-ings & lights applied LED.

Type Remote Control
Working voltage 12-24VDC
Decode channel 24 channel
Material iron
Power Source  DC
Wattage 576
Max. Load Power 1152W
Certification CCC,CE,EMC,RoHS
Working temperature -20-60℃
Output power 5V:<60W,  12V:<144W,  24V:<288W
Supply Wattage 1W
Connect mode common anode
Decode channel 24 channel
Power consumption <0.25A(12V); <0.30A(24V)
Signal input DMX-512 Standard digital signal
Signal output 0~24V, Max. 3A /CH
Static power consumption <1W
Control Distance 50~100M at open field
External dimension L340 * W142 * H57 mm

External Dimension to 24 channle dmx:


1:DATA+ 2:DATA- 3:-6:NC 7-8:GND

1:GND 3:DATA+ 2:DATA-


DMX address code settings:

Address code setting on/off
Please see the operating instruction next page
Power input interface:
DC12-24V input,supplied power with the decoder and the lamps it takes. Each DMX common controller
occupied 3 DMX addresses, adopt coding switch set address,it is a Binary numerical code switch which
is setting DMX original address code from 1 to 9,1 is the lowest,and 9 is the highest,511 address codes
could be setted in all.DMX original address code equal aggregate value of the coding switch value from
1 to 9,dial the coding switch downwards(ON is setted 1),the value of bit can be gotten, on the contrary,
the value of bit is 0.

DMX signal can be received when coding switch FUN(10)=OFF(ON is setted 0).

 1. example 1:
Look at the following picture,if you want to set 37 as  the address code, you can only dial down the first,
the third and the sixth code switch, the aggregate value of coding switch value from 1 to 9 is 32+4+1,that
is,the original address code of DMX512 is 37

2. example 1:

Look at the following picture,if you want to set 328 as the address code,you can only dial down the ninth,the
seventh and the fourth code switch, the aggregate value of coding switch value from 1 to 9 is 256+64+8,that
is,the original address code of DMX512 is 328.




Packaging of 24 channel dmx controller:
24 channel dmx controller box:
24 Channel dmx 512 controller)
24 channel dmx controller assembly line:
Multi Channel DMX
24 channel dmx controller:
dmx512 control 24 ch

Application of 24 channel dmx controller:
24CH DMX decoder


ddd1

$123.00




Choose a ranking for this item. 1 star is the worst and 5 stars is the best.

NOTE: HTML tags are not allowed.
NOTE: Reviews require prior approval before they will be displayed


Date Added: 05/25/2017 by Kendrick Henry
BestRating is 5 starsBestRating is 5 stars
The 24 Channel led DMX decoder was made just for our project!


Date Added: 01/02/2016 by Edward Davis
BestRating is 5 starsBestRating is 5 stars
The controller performance-to-price ratio is high,Salesman was endlessly kind and patient。
