• dmx settings address&Receiver Moduleid(dmx program editor)

dmx settings address&Receiver Moduleid(dmx program editor)

$79.30

  • Model: HK-led-d-332014
  • Shipping Weight: 0.8kg


Add to Cart:



INTERNATIONAL SHIPPING AVAILABLE.
We ship to over 200 countries worldwide!



Descriptions:

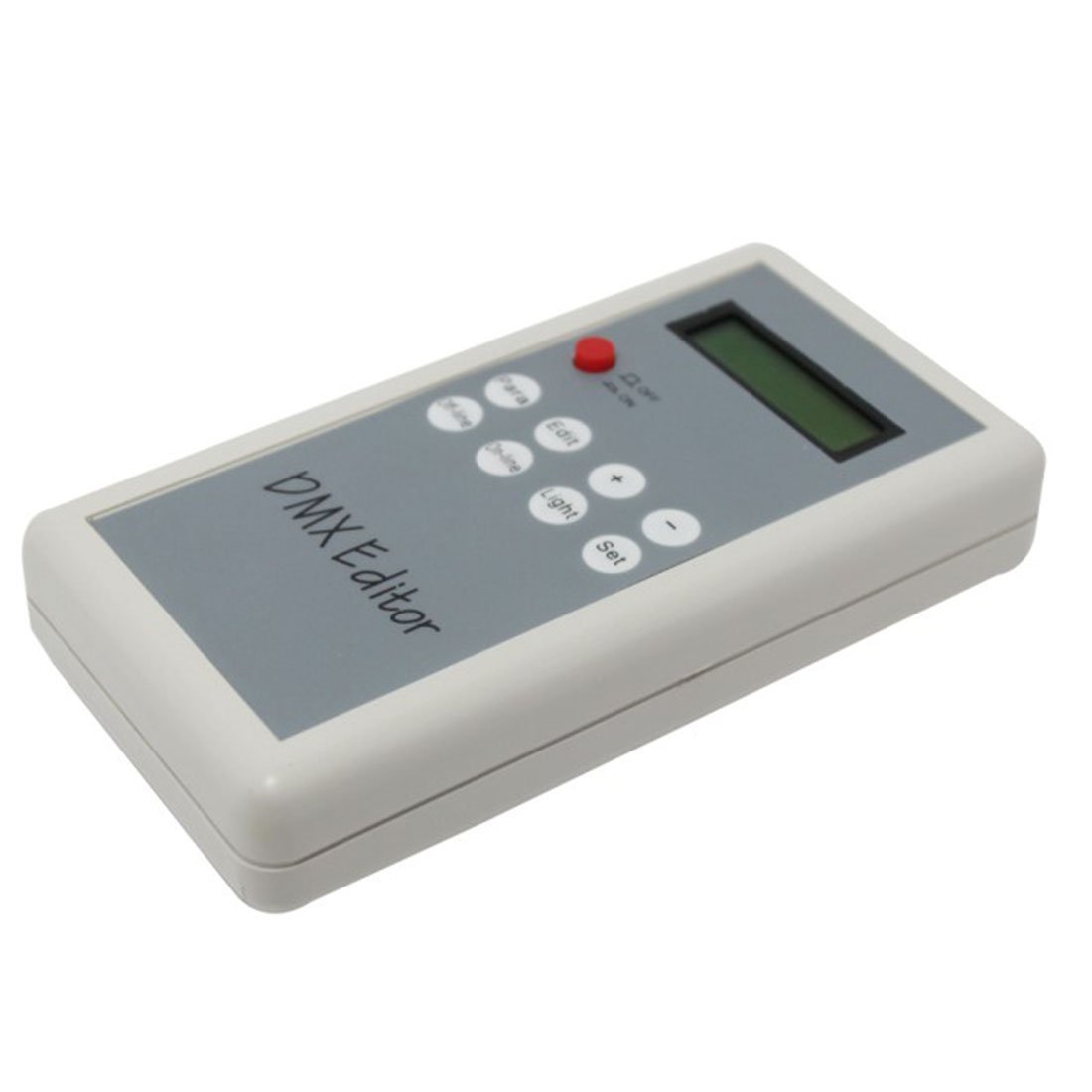

How to set dmx address?with the dmx program editor to setings address or Receiver Moduleid.

Handheld DMX editor is is one of the standard product platform in our company,supporting the
use of another product of our company--- DMX21xx series DMX receiver module, It can be off-line
querying and modifying individual DMX module Including address, the default mode and speed,
in addition,it can modifying and test the function of the DMX modules on-line. It have convenient
to carry, easy to use etc. characteristics.The Led DMX Editor can be off-line querying and modify
-ing individual DMX module Including address,the default mode and speed, in addition,it can
modifying and test the function of the DMX modules on-line. It have convenient to carry, easy to use
etc. characteristics.

Parameters
● Working temperature: -20-60℃
● Supply voltage: DC 4.5V
● External dimension: L140*W70*H25 mm
● Packing Size: L148 * W76 * H48 mm
● Net weight: 116g
● Gross weight: 170g
● Static power consumption: <0.5W
● Connection method: off-line(one-to-one),on-line(one-to-many)
● Button Number : 9
● Power Source : DC
● Certification : CE,FCC,PSE,RoHS
● Color : Beige

Press-key function

on/off : power key;
Para : switch the message which is showed on screen,
such as address,mode,speed;
Edit : switch the bit of the value;
+ : add 1;
- : minus 1;
Off-line : edit one-to-one;
On-line : edit one-to-many;
Light : backlight;
Set : sure to set.



Direction for use









Package included:
1 x Hand held DMX ID Editor
