Descriptions:
WS2812B IC professional development from the sale Symphony of Lights light strip, Cheap sales strip
of WS2812B (the WS2812B is an upgraded version of the WS2811 LED)The new WS2812B now only
has 4 pins.this simpler layou and can be controlled separately to each one lamp,every meter light can
be cut.we specialize in designing drive control scheme and developing new product for led decorative
lighting and LED lighting industry, providing all-dimensional solutions.We mainly engaged in designing
and selling the led lighting drive IC,LED lighting constant current driving IC,LED lighting control system .
1. Your inquiry related to our products or prices will be replied in 24 hours .
2. Professional led manufacturer both on led component and application product .
3. Professional support on technology and flash design;
4. Well-trained and experienced staffs to answer all your enquires in fluent English .
5. All the products must have 10 hours' aging before delivering,to ensure the quality.
6. Unique appearance design and ideal recommended services are offered .
7. OEM&ODM are welcome,any your customized lightings we can help you to design and put into the product .
8. On time delivery and prompt response to your enquiry .
9. Satisfied pre-sales and after-sales service,welcome all requires and we will reply promptly .

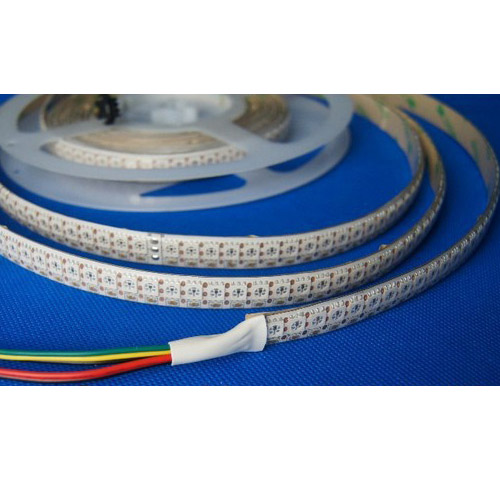

144leds/m WS2812B(5050 rgb led with WS2812B IC built-in) led pixel strip,DC5V,1m long,
| Input voltage |
DC5v |
| Power |
42watt/meter |
| LED resource |
WS2812B led(5050 SMD RGB LED with built-in improved version of ws2811 ic） |
| Q'ty of LED |
144leds/meter, each LED is separately controlle |
| IC Type |
WS2812B-improved version ws2811 IC(built inside the 5050 smd rgb led) |
| Q'ty of IC |
144IC/meter (1 IC drives 1 channle led chip) |
| Pixels |
144/meter |
| Pitch |
7mm(1000/144) |
| Grey scale |
256 |
| Bits/color |
8-bits/color;total 24bit for RGB color |
| Wavelength |
620-630 (λ) 520-525 (λ) 465-470 (λ) |
| Light intensity |
500-600 (mcd) 900-1200 (mcd) 250-310 (mcd) |
| Product size |
5000*12*2.5 |
| Protection rate |
NON-WATERPROOF, IP20
Silicon Tube waterproof IP67（Optional） |
| Colors |
Full color RGB, dream color changing |
| Package |
1meters in anti-static bag （Optional） |
144led smd 5050 full color led strip fast delivery
The highest resolution Digital LED Strip in the market, 144LED/M ws2812b LED Strip, in built IC ws2812B,
each LED
Be controlled individually.
1. With WS2812B( WS2812B ) IC intergrited,durable and easy for installation;
2. High light transmittance: the transparent of silicon glue and epoxy resin glue can make
the light transmittance reach at least 90%,the bare board can make it up to 100%.
3.Super thin flexible PCB adopted, bent resistance,flexibr for any shape.
4.Low working voltage, DC5v, ensure safety in wet condition.
5.Good service,comprihensive pre-sale and after-sale service, also provide design and ODM service
to projectors.
There are three wires:
DC+ and GND connect to power supplier;
DAT and GND connect to controller.
1. Parameter
DC5v, 42watt/meter;
5050 RGB, 144leds/meter, each LED separately control
Inbuilt IC ws2812B
Grey scale: 256;
Prodcut size:5000*12*2.5;
Colors: Full color changing
1meters/reel in anti-static bag.（Optional）
Download of WS2812B :
The difference between WS2812B and WS2812 WS2811
Individually addressable RGB LED comparison
SPI control mode:
Note: SIP control mode,the signal line and the clock do not reverse,light bar is a 5V voltage,if the controller
is 12V Please separate power supply for the lights, as it is powered directly 12V, otherwise it will burn!
Applications:
1. Architectural decorative lighting and backlighting for homes, hotels, marketplaces, bars etc;
2. Auditorium walkway lighting, outdoor illuminated signs and advertisements;
3. Illumination lighting using business walkway, canopy, stairway lighting, amusement park;
4. Channel signal lighting for stores, restaurants, bars, etc;
5, home cove trim such as door frames, bar, wine cabinet, wardrobe, TV cabinet.
6, car such as body, vehicle.
7. DIY lights for home use;
8. city skyline lighting including buildings, advertising wall signs, Christmas landscape decoration.
9. irregular design of body decoration, such as hotels, clubs, KTV places such as polygonal walls, drop
ceilings and groove design.
Every one of those ws2812B knowledge point that me just mentioned are interested!ths!
